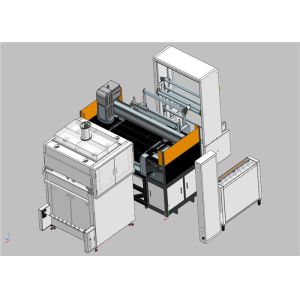

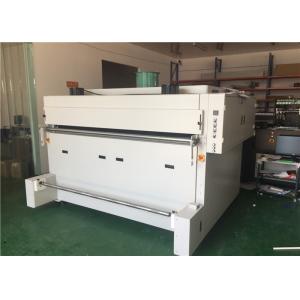

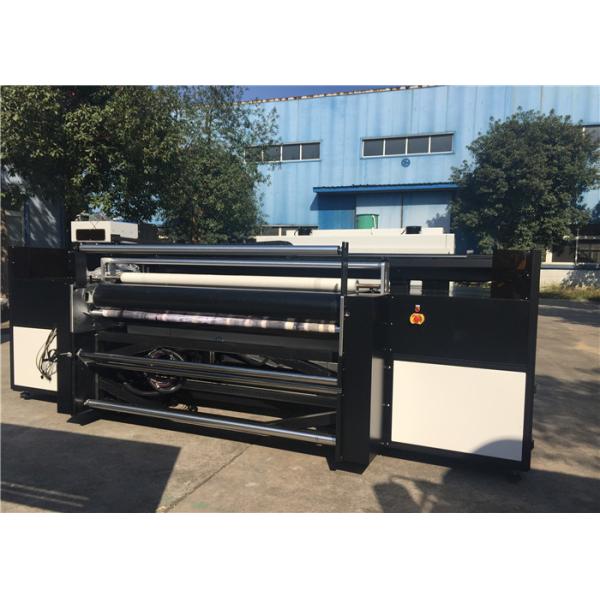

Automatic Rolling Digital Direct Printer Large Format Digital Printing Machine 3.2M

Main advantage:

1. Upgraded rear feeding & taking up device,intelligent &convenient
2. Intelligent inspection function of the ink state
3. Top-level configuration ink supplying system

Technical parameter:

Description of printer:

--

1) Print speed:

1. 2 pass 120m2/hour, 600*600 dpi
2. 3 pass 72m2/hour, 600*900 dpi
3. 4 pass 54m2/hour, 600*1200 dpi

16 heads:

1. 2 pass 240m2/hour, 600*600 dpi
2. 3 pass 160m2/hour, 600*900 dpi
3. 4 pass 120m2/hour, 600*1200 dpi

2) main system :

1. operating platform
2. Ink supply system:peristaltic pump supply,degassing NEG pressure system.
3. Belt cleaning system:Auto brush & sponge-roller washing system belt wiping system.
4. Printing control and operating system
5. Electric systerm
6. Transducer & photoelectric sensor system, while fabric not flat or upwarp , it will alarm, and printhead will stop working.One set of this system installed beside belt,another one beside printhead.
7. ​Belt-transporting system,integrated fabric feeding & take-up system,fabric spreading , fabric entry unit.

3) Main parts are imported :

1. Printhead: Japan
2. Software:TEXPRINT (original) which is widely used in the digital printing industry, and authoritatively in the world.
3. Japan Panasonic servo motor & German speed reducer.
4. Fabric transportation: Habasit industrial belt.Origin from Swiss Habasit.
5. Printhead moving guider :Germany

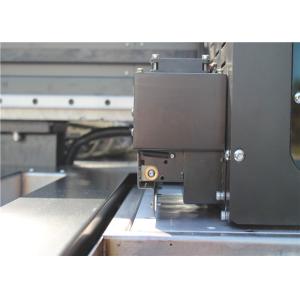

4) Printhead:

Printhead: kyocera (Japan original) 4-8pcs,

First time buy 4 heads,later you can add 2 or 4heads in the same machine,just add

heads charges.

5) Inks are available for three chemistries:

1. --. Reactive inks – suitable for natural fibers such as cotton,silk,wool,etc
2. -- Acid inks – suitable for polyamide lycra, wool, silk
3. -- Disperse inks – suitable for polyester and blends
4. --- Pigment - suitable for all kind of fabric

​

Why Us?

1. High quality and service(pre sales service, insale customer service, after sales technical
2. Earliest and Most professional core printer manufacturer inChina.15years in digital textile
3. printing,25years in automatic control system.
4. support service, and other special service you need)
5. Wide range spec product for your detailed requirement.

Print applications products:

Clothes, scarf,cushion,curtain,sofa fabric etc.

FAQ:

1. How much cost for per sqmt?

Around 0.23USD/m2

Beijing Silk Road Enterprise Management Services Co.,Ltd.

We are a professional high - tech manufacturer specializing in developing, producing, and marketing digital textile printing machine. We have an independent R & D department, supporting with a full range of testing equipment, as well as advanced software and hardware.

The R & D team have 15 years experienced in this domain and senior technical personnel as core force, which provided a solid guarantee for product development.

Digital printer list:

----Digital textile printer ,

1) Ricoh gen5 speed: 120-300 m2/hour

2) Epson print head . print speed: 25-100 m2/hour

3) SG ( starfire 1024 ) speed: 200-600 m2/hour

----Digital carpet printer

 1) 16-32 heads of printer 2.2m /3.2m

 2)  32 heads of printer 4.2m

---- Machine can print width:

1) 1.8m

2) 2.2m

3) 3.2m

4) 4.2m
